HCS-60-L

HCS-60-L

HCS-60-L

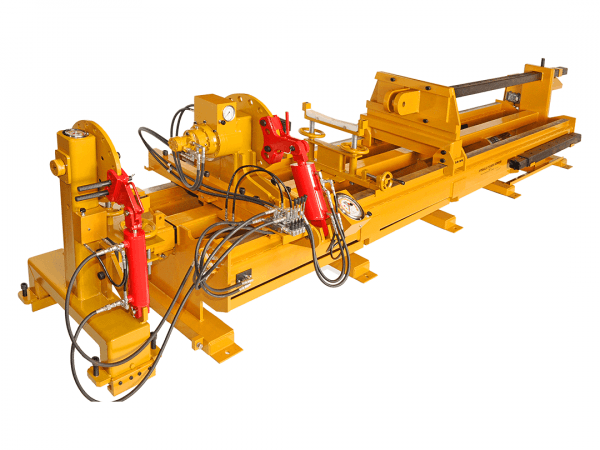

This model is essentially the same as the HCS-60, has identical features, but will handle longer cylinders. Will service all current CAT® cylinders and Hitachi® EX-1800 and EX-3500 Boom Cylinders.

The HCS-60- L is equipped with a 7 1/2 HP Hydraulic Power Supply that powers seven hydraulic functions that provide maximum productivity and ease of operation. There are two hydraulic torquing devices, one for removing threaded cylinder caps and highly torqued cap bolts (can also be used to remove piston nuts on cylinders too long to fit in Servicer), the other for removing highly torqued piston retaining nuts. A High Torque Hydraulic Nut Runner is also provided. Set up functions are hydraulically assisted.

The HCS-60- L is available certified CE

Technical Specs

Tuxco ModelTorque CapacitySingle / Double Acting TorquerMax Capacity Cylinder LengthMax Capacity Cylinder DiameterMax. Req. Floor SpacePower RequiredHorse PowerNut Runner TorqueNut Runner Speed WrenchBuilt-In SpannerAccess RequiredTorquer Stroke SpeedRod Extraction Installation SpeedPendent ControlExtraction Force
lb. ft. (kg-m)(m)(mm)(kN)
HCS-60-L60,000 (8298)TWO DOUBLE34 ft. (10.4)20/30 in. (508/762)43′ x 5′ with 12′ of air space on one endALL VOLTAGE 50/60Hz 3 Ph7.5 HP5,000 lb.ft.8 RPMYESFRONT6/10″ STROKE 10/14 Sec./Ft.48″ STROKE 4.0 Sec./Ft.YES14,700 lbs. (65.4)
