Key Features

HE-ADCT-01

  • All data validation or not validation are listed on a report including the lot management
  • USB interface for program backup to unload the test reports
  • Contamination level is detected in real time / Contamination sensor PARKER ICount PD
  • Complete safety closure via sliding tunnels
  • Regular internal cleaning of the tank, eliminating the residues of contaminated material
  • Heat exchanger to always keep the oil inside the tank cool

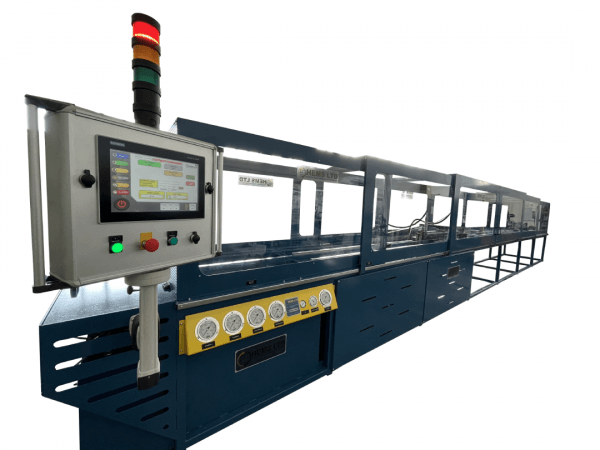

HE-ADCT-02

  • All data validation or not validation are listed on a report including the lot management
  • USB interface for program backup to unload the test reports
  • Controlled and reported flushing
  • Pressure lost record in both stations
  • Minimum sliding pressure record with oil non-energized seal
  • Internal seal leak test
  • Selectable long cycles
  • Monitoring temperature in the tank
  • Contamination level is detected in real time / Contamination sensor PARKER ICount PD

Technical Specs

Model Tank Capacity Max testing pressure Cylinder specification Machine weight Max cylinder weight Pneumatic feeding system pressure min/max Internal tank capacity Maximum fluid temperature
HE-ADCT-01 400 litre 450 bar 5000mm extended length / 500mm diameter 1,200Kg (empty) 600kg 6/9 bar 200 lt 50
HE-ADCT-02 650 litre 415 bar 10,000mm extended length / 600mm diameter 2,000Kg (empty) 15 q 8/10 bar 500 lt 50
