PCRB-4000 (Lightweight Cylinder Repair Kit)

The PCRB-4000 is a lightweight, portable kit. It is NOT designed or intended to be used as a heavy-duty stationary cylinder repair bench.

For heavy-duty cylinder stand range, please click here.

HEMS Lightweight Cylinder Repair Kit is an affordable alternative to Disassembly benches available in the market.   The work station accommodates all required tooling and fixtures.

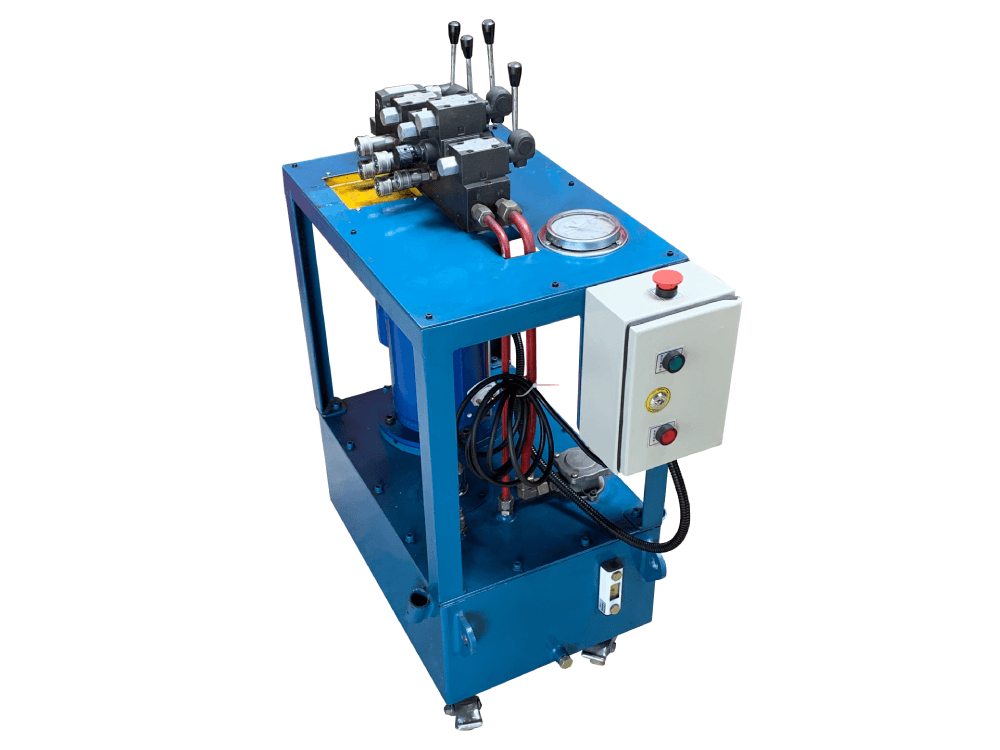

This unit is built with Hydraulic hand operated valve ratchet mechanism with  hydraulic power pack and very easy to shipment from one place to another. This whole unit can be placed in a small box (75” X 60” 50”) The length of the cylinder extracting capacity up to 1.0 meter. With extended forks up to 3 meter long cylinder can be disassembled. Max barrel dia holding up to 200mm. weight loading capacity up to 1 ton.

Tooling listed includes:

  • Rotatable head unit with different fixtures
  • Barrel holder
  • Nut removing Hex socket set (36, 38, 41, 46, 50, 55, 60, 65, 75 and 80mm sockets)
  • Spanner plates for larger than 90 & 95mm nut
  • Extendable Clevis support
  • Gland removal sets

For consultation and further information please contact sales@hemsltd.com

Download the brochure

Technical Specs

HEMS ModelTorque CapacitySingle or Double Acting CylinderMaximum size of cylinder to be repairedMax. Cylinder WeightMax. Floor SpaceMotor PowerNut Runner TorqueNut Runner Spanner Wrench SpeedBuilt-In SpannerAccess RequiredTorquer Stroke SpeedRod Extension SpeedMaximum Rod Extension ForceHydraulic System PressureHydraulic Nutbuster CapacityHydraulic Fluid ReservoirElectrical System
PCRB-400049,759Nm @ 350 barDouble2000mm (extended) with Ø150mm diameter or 3000mm (extended) with Ø200mm diameter1000kg2.8 square meters3HP250Nm14-100 RPMYesFront and Rear200mm/sec350mm/sec226kN350bar49,759Nm @ 350 bar40LAll voltages, 50/60Hz
