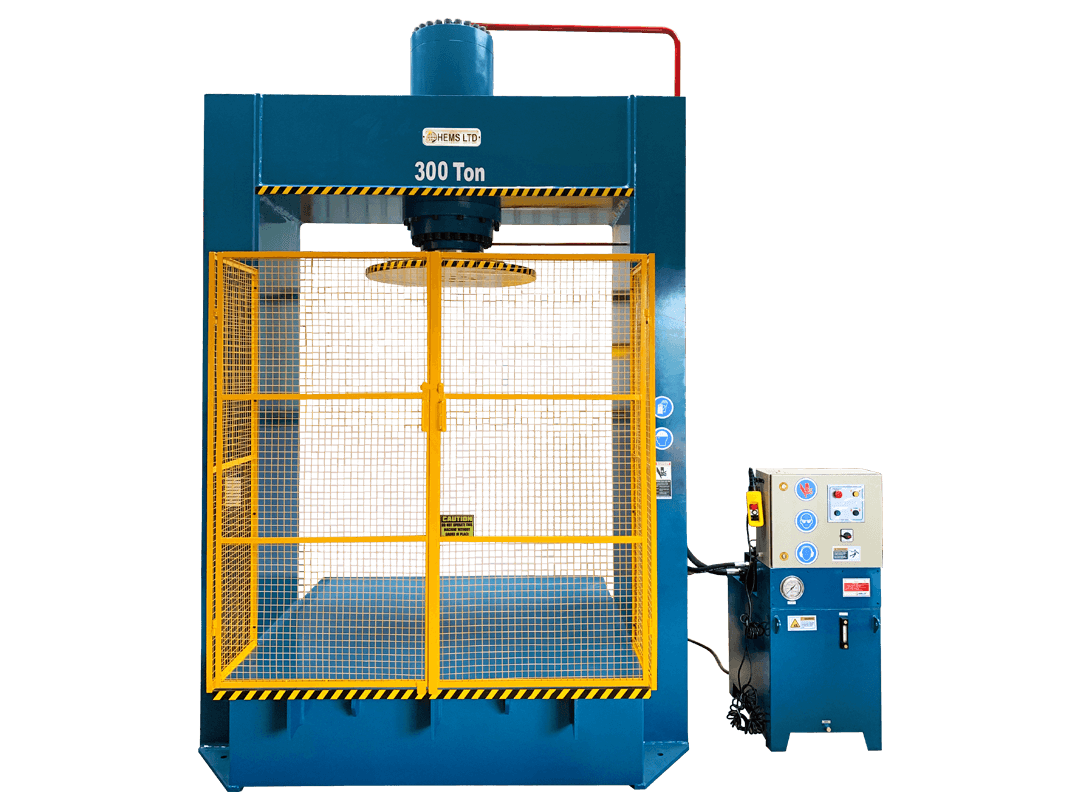

Vertical H Frame Press

HEMS Vertical Press is a workshop type hydraulic press with capacity ranging from 15-500tons depending on the application. The Vertical Press was designed for removal and fitment of bearing, sprockets, gears, straightening of shafts and general maintenance.

Capacity is 100t x 200 mm stroke double acting hydraulic cylinder with suitable single stage 2 hp hydraulic power pack unit; hand lever operated directional control valve. Electrical and hydraulic elements indigenous reputed make.

The press will be supplied with “V” blocks (2 Nos.) and ram adaptor (1 No.) and hand operated winch mechanism for day light adjustment as standard accessories.

Please contact sales@hemsltd.com for more information.

Technical Specs

Hand Pump Press

Model Number	Description	Press Pressure in bar	Hand Pump Stages	HP Model	Pressure in Bar		Flow/Stroke
Model Number	Description	Press Pressure in bar	Hand Pump Stages	HP Model	1st Stage	2nd Stage	1st Stage	2nd Stage
HE-VP 10-150	Workshop press with hand pump	700	Two stage	HP5012/5	30	550	2.8	49
HE-VP 15-150	Workshop press with hand pump	700	Two stage	HP5012/5	30	550	2.8	49
HE-VP 20-150	Workshop press with hand pump	700	Two stage	HP5012/5	30	550	2.8	49
HE-VP 25-150	Workshop press with hand pump	700	Two stage	HP5012/5	30	550	2.8	49
HE-VP 30-150	Workshop press with hand pump	700	Two stage	HP5012/5	30	550	2.8	49
HE-VP 50-150	Workshop press with hand pump	700	Two stage	HP5012/7	30	550	2.8	49
HE-VP 60-200	Workshop press with hand pump	700	Two stage	HP5012/7	30	550	2.8	49
HE-VP 75-200	Workshop press with hand pump	700	Two stage	HP5012/7	30	550	2.8	49
HE-VP 100-200	Workshop press with hand pump	700	Two stage	HP5012/13	30	550	2.8	49
HE-VP 150-300	Workshop press with hand pump	700	Two stage	HP5012/13	30	550	2.8	49
HE-VP 200-300	Workshop press with hand pump	700	Two stage	HP5012/20	30	550	2.8	49
HE-VP 300-300	Workshop press with hand pump	700	Two stage	HP5012/20	30	550	2.8	49

Power Pack Press

Model Number	Description	Press Pressure in bar	radial Pump Stages	Flow Rate in cc	Motor/HP	Phase
HE-VP 10-150	Workshop press with power pack	700	Single	1	2 HP	Single/Three
HE-VP 15-150	Workshop press with power pack	700	Single	1	2 HP	Single/Three
HE-VP 20-150	Workshop press with power pack	700	Single	1	2 HP	Single/Three
HE-VP 25-150	Workshop press with power pack	700	Single	1	2 HP	Single/Three
HE-VP 30-150	Workshop press with power pack	700	Single	1	2 HP	Single/Three
HE-VP 50-150	Workshop press with power pack	700	Single	1	2 HP	Single/Three
HE-VP 60-200	Workshop press with power pack	700	Single	1	2 HP	Single/Three
HE-VP 75-200	Workshop press with power pack	700	Single	1	2 HP	Single/Three
HE-VP 100-200	Workshop press with power pack	700	Single	1	2 HP	Single/Three
HE-VP 150-300	Workshop press with power pack	700	Single	1	2 HP	Single/Three
HE-VP 200-300	Workshop press with power pack	700	Single	1	2 HP	Single/Three
HE-VP 300-300	Workshop press with power pack	700	Single	1	2 HP	Single/Three
