Technical Specs
| Model Number | Capacity (ton) | Stroke (mm) | Working Pressure (kg/cm2) | Approx Weight (kg) | Operation | Universal Tooling Set (Included in the package) | Pin Details | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Min Dia. (mm) | Max Dia. (mm) | Min Length (mm) | Max Length (mm) | |||||||

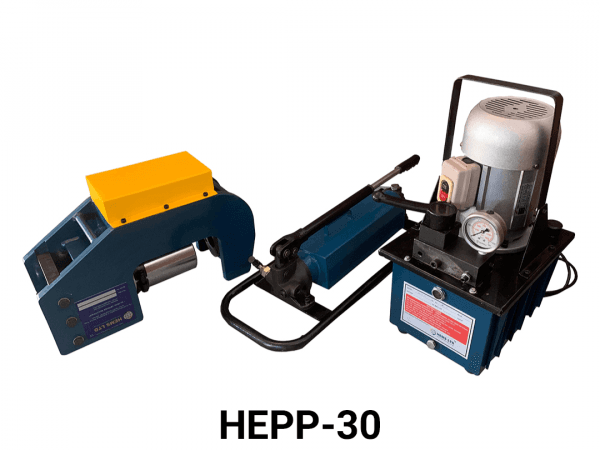

| HEPP-30 M | 30 | 200 | 650 | 45 | Hand pump | 3 Sets to cover 19.3mm up to 36.2mm in diameter | 19.3 | 36.2 | 90 | 170 |
| HEPP-30 E | 30 | 200 | 650 | 45 | Electric pump | 3 Sets to cover 19.3mm up to 36.2mm in diameter | 19.3 | 36.2 | 90 | 170 |
| HEPP-50 M | 50 | 250 | 650 | 83.5 | Hand pump | 4 Sets to cover 19.3mm up to 36.4mm in diameter | 19.3 | 36.4 | 133 | 178 |
| HEPP-50 E | 50 | 250 | 650 | 83.5 | Electric pump (dual control pump 2 in 1) | 4 Sets to cover 19.3mm up to 36.4mm in diameter | 19.3 | 36.4 | 133 | 178 |
