Do you outsource your cylinder repair?
Are you still using dangerous old methods?
Do you have the latest and right equipment to do this?
HEMS/Tuxco offers the most comprehensive range of static hydraulic cylinder repair benches in the market today. All our static cylinder repair benches come complete with the accessories required to begin repairing cylinders immediately. Aided with a trained technician, the largest of cylinders can be fully disassembled, repaired and reassembled in under an hour.
Download the brochure
Our Models
| Tuxco Model | Torque Capacity | Single / Double Acting Torquer | Max Capacity Cylinder Length | Max Capacity Cylinder Diameter | Max. Req. Floor Space | Power Required | Horse Power | Nut Runner Torque | Nut Runner Speed Wrench | Built-In Spanner | Access Required | Torquer Stroke Speed | Rod Extraction Installation Speed | Pendent Control | Extraction Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb. ft. (kg-m) | (m) | (mm) | (kN) | ||||||||||||
| HCS-25-LS CE-EX |
25,000 (3457.7) |
SINGLE | 22 ft. (6.7) |
16 in. (406.4) |
23' x 3' with 9' of air space on one end | SHOP AIR 115/230V 60Hz/1 Ph |
N/A | N/A | N/A | YES | FRONT REAR |
10" STROKE 29 Sec./Ft. |
48" STROKE 7.6 Sec./Ft. |
NO | 8,300 lbs. (36.9) |
| HCS-2520 CE-EX |
25,000 (3457.7) |
SINGLE | 26 ft. (7.9) |
22 in. (558.8) |
30' x 3' with 10' of air space on one end | SHOP AIR | N/A | N/A | N/A | YES | FRONT REAR |
10" STROKE 29 Sec./Ft. |
14" STROKE 33 Sec./Ft. |
NO | 9,000 lbs. (44.1) |
| HCS-30 CE-EX |
30,000 (4149) |
DOUBLE | 22 ft. (6.7) |
16 in. (406.4) |
26' x 3' with 9' of air space on one end | ALL VOLTAGE 50/60Hz 3 Ph |
5 HP | 5,000 lb.ft. | 8 RPM | YES | FRONT | 10" STROKE 14 Sec./Ft. |
48" STROKE 5.2 Sec./Ft. |
YES | 14,000 lbs. (62.3) |
| HCS-40 CE-EX |
40,000 (5532) |
DOUBLE | 26 ft. (7.9) |
22 in. (558.8) |
33' x 3' with 9' of air space on one end | ALL VOLTAGE 50/60Hz 3 Ph |
5 HP | 5,000 lb.ft. | 8 RPM | YES | FRONT | 10" STROKE 13.5 Sec./Ft. |
48" STROKE 5.2 Sec./Ft. |
YES | 14,000 lbs. (62.3) |

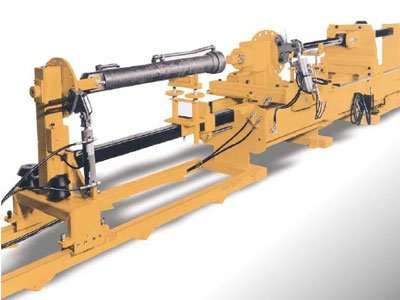

| HCS-60 CE-EX |
60,000 (8298) |
TWO DOUBLE |
24 ft. (7.3) |
20/30 in. (508/762) |
32' x 5' with 11' of air space on one end | ALL VOLTAGE 50/60Hz 3 Ph |
7 1/2 HP | 5,000 lb.ft. | 8 RPM | YES | FRONT | 6/10" STROKE 10/14 Sec./Ft. |
48" STROKE 4.0 Sec./Ft. |
YES | 14,700 lbs. (65.4) |
| HCS-60-L CE-EX |
60,000 (8298) |
TWO DOUBLE |
34 ft. (10.4) |
20/30 in. (508/762) |
43' x 5' with 12' of air space on one end | ALL VOLTAGE 50/60Hz 3 Ph |
7 1/2 HP | 5,000 lb.ft. | 8 RPM | YES | FRONT | 6/10" STROKE 10/14 Sec./Ft. |
48" STROKE 4.0 Sec./Ft. |
YES | 14,700 lbs. (65.4) |
Static Hydraulic Cylinder Repair Bench Features
- Versatility
- One Man Operation
- Built in Power
- Quick return on investment
- Years of maintenance- free
- Easy installation
- Centreline Mounting
- Built in Universal Spanner Wrench
- T-Slot Securing System
- Universal High Torque Wrench
- Adjustable support stands
- Easy to read Torque Gauges
