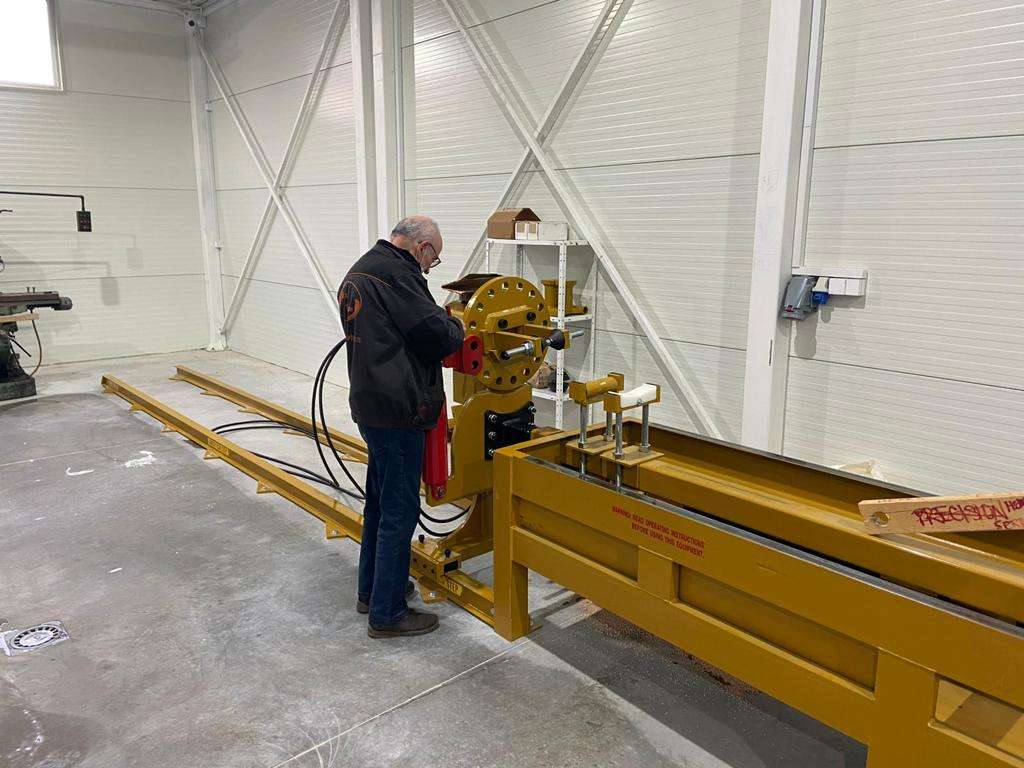

The wait is finally over! HEMS are pleased to announce the launch of the ONE and ONLY  “Portable Cylinder Repair Bench” to the marketplace.

Cog

Lightweight and fully portable

Cog

No matter how remote you are

Cog

Cost effective and a safe solution

Cog

36mm to 72mm socket set and tooling included

Cog

Equipment can be moved and assembled with minimal effort

Download the brochure
Facility in Australia
Cog

Do you outsource your cylinder repair?

Cog

Are you still using dangerous old methods?

Cog

Do you have the latest and right equipment to do this?

HEMS/Tuxco offers the most comprehensive range of hydraulic cylinder repair stands and hydraulic cylinder repair tools in the market today. All our cylinder repair stands come complete with the accessories required to begin repairing cylinders immediately. Aided with a trained technician, the largest of cylinders can be fully disassembled, repaired and reassembled in under an hour.

Download the brochure

Our Models

HEMS branded ECON Cylinder Repair Models coming shortly

HEMS ModelTorque CapacitySingle / Double Acting TorquerMax Cylinder Length (Extended)Max Cylinder DiameterMax. Req. Floor SpacePower RequiredNut Runner TorqueNut Runner Spanner WrenchBuilt-In SpannerAccess RequiredTorquer Stroke SpeedRod Extraction Installation SpeedMaximum Rotational TorqueMaximum Rod Extension ForceHydraulic System PressureHydraulic Nut Buster CapacityHydraulic Fluid ReservoirColourElectrical System
lb. ft.(mm)(mm)(kN)
PCBR-400043,000DOUBLE ACTING30002002.8 sq M3HP187.7 lb.ft.14-100 RPMNOFRONT
REAR
200m350mm/s250Nm226kN300 bar2 ton40LCustomer's Choice110V/230V, 50/60Hz, Single Phase, 20amp
Tuxco ModelTorque CapacitySingle / Double Acting TorquerMax Capacity Cylinder LengthMax Capacity Cylinder DiameterMax. Req. Floor SpacePower RequiredHorse PowerNut Runner TorqueNut Runner Speed WrenchBuilt-In SpannerAccess RequiredTorquer Stroke SpeedRod Extraction Installation SpeedPendent ControlExtraction Force
lb. ft. (kg-m)(m)(mm)(kN)
HCS-25-LS
CE-EX
25,000
(3457.7)
SINGLE19 ft.
(5.8)
12 in.
(304.8)
23' x 3' with 9' of air space on one endSHOP AIR
115/230V
60Hz/1 Ph
N/AN/AN/AYESFRONT
REAR
10" STROKE
29 Sec./Ft.
48" STROKE
7.6 Sec./Ft.
NO8,300 lbs.
(36.9)
HCS-2520
CE-EX
25,000
(3457.7)
SINGLE26 ft.
(7.9)
22 in.
(558.8)
30' x 3' with 10' of air space on one endSHOP AIRN/AN/AN/AYESFRONT
REAR
10" STROKE
29 Sec./Ft.
14" STROKE
33 Sec./Ft.
NO9,000 lbs.
(44.1)
HCS-30
CE-EX
30,000
(4149)
DOUBLE19 ft.
(5.8)
12 in.
(304.8)
26' x 3' with 9' of air space on one endALL VOLTAGE
50/60Hz 3 Ph
5 HP5,000 lb.ft.8 RPMYESFRONT10" STROKE
14 Sec./Ft.
48" STROKE
5.2 Sec./Ft.
YES14,000 lbs.
(62.3)
HCS-40
CE-EX
40,000
(5532)
DOUBLE26 ft.
(7.9)
22 in.
(558.8)
33' x 3' with 9' of air space on one endALL VOLTAGE
50/60Hz 3 Ph
5 HP5,000 lb.ft.8 RPMYESFRONT10" STROKE
13.5 Sec./Ft.
48" STROKE
5.2 Sec./Ft.
YES14,000 lbs.
(62.3)
HCS-60
CE-EX
60,000
(8298)
TWO
DOUBLE
24 ft.
(7.3)
20/30 in.
(508/762)
32' x 5' with 11' of air space on one endALL VOLTAGE
50/60Hz 3 Ph
7 1/2 HP5,000 lb.ft.8 RPMYESFRONT6/10" STROKE
10/14 Sec./Ft.
48" STROKE
4.0 Sec./Ft.
YES14,700 lbs.
(65.4)
HCS-60-L
CE-EX
60,000
(8298)
TWO
DOUBLE
34 ft.
(10.4)
20/30 in.
(508/762)
43' x 5' with 12' of air space on one endALL VOLTAGE
50/60Hz 3 Ph
7 1/2 HP5,000 lb.ft.8 RPMYESFRONT6/10" STROKE
10/14 Sec./Ft.
48" STROKE
4.0 Sec./Ft.
YES14,700 lbs.
(65.4)

Hydraulic Cylinder Repair Features

  • Versatility
  • One Man Operation
  • Built in Power
  • Quick return on investment
  • Years of maintenance- free
  • Easy installation
  • Centreline Mounting
  • Built in Universal Spanner Wrench
  • T-Slot Securing System
  • Universal High Torque Wrench
  • Adjustable support stands
  • Easy to read Torque Gauges
